Multifan® 8"-20" Fan Replacement Motor (1/3 HP, 220V, 1600 RPM)
Restore peak efficiency to your ventilation system with the Multifan® 8"-20" Fan Replacement Motor. Engineered by Vostermans Ventilation, this industrial-grade motor is the gold standard for harsh environments. It delivers reliable, continuous-duty performance in agricultural, horticultural, and industrial facilities.
Whether you are managing a livestock barn, a commercial greenhouse, or a high-moisture factory floor, this motor provides the durable power needed to keep your air moving and your environment safe.
Key Features
- Built for Harsh Climates: Features a rugged, corrosion-resistant aluminum housing that easily withstands high humidity, dust, and ammonia vapors.
- Maximum Protection (IP55): The Totally Enclosed Air-Over (TEAO) design prevents dust, dirt, and water spray from damaging critical internal components.
- Superior Thermal Resistance: Equipped with Class F insulation rated up to 311°F (155°C) to prevent overheating during continuous summer operation.
- Energy Efficient: Draws only 2.0 Amps at full load, lowering your utility costs without sacrificing airflow velocity.
Technical Specifications
- Horsepower: 1/3 HP
- Voltage: 220V / 240V (Single-Phase)
- Speed: 1,600 RPM
- Amperage: 2.0 Amps
- Enclosure: TEAO (Totally Enclosed Air-Over)
- Insulation Class: Class F
- Fan Compatibility: Fits most standard 8-inch to 20-inch Multifan panel, basket, and ring fans.
⚠️ Important Compatibility Note
Please check your existing motor before ordering to ensure a perfect fit:
- Standard Style: Features an aluminum frame, 3/4" cooling fin spacing, and a mounting foot attached to the frame arm.
- Q-Style: Typically used on fiberglass frames, features tighter 3/8" cooling fin spacing, and lacks a frame arm foot. Look for a stamped "Q" on your current motor nameplate

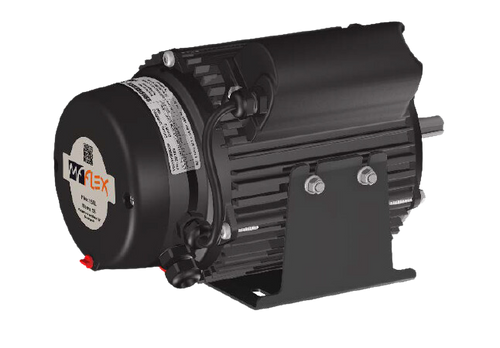

Multifan® 8-20" Fan Replacement Motor, 1/3hp, 220V, 1600rpm, 2amp
An excellent replacement motor for your swine, poultry, or dairy building fans, this Vostermans 1/3HP, 220V Mf-Flex Totally Enclosed Air-Over (TEAO) flex motor has an aluminum extrusion profile. The motor meets CE standards and fulfills the international specifications of approved institutes for CSA and UL. Dust and water-resistant, this motor is produced in accordance with the IP55 standard; the materials used meet the standard of insulation class F with resistance to temperatures up to 311° F. For proper cooling, the motor has to be mounted in the airstream. 220 volt, 1/3 HP.
