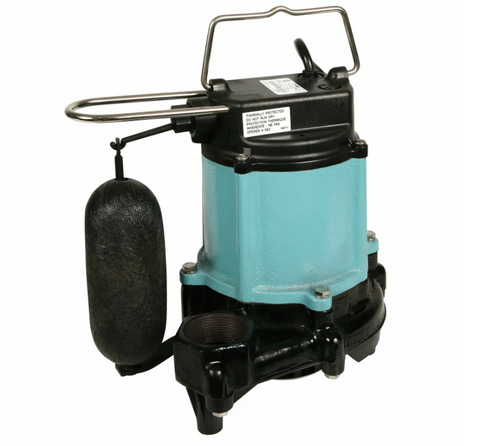

Little Giant® 10EN-CIA Submersible Sump Pump
A professional-grade 1/2 HP submersible sump and effluent pump designed for continuous duty in residential or light commercial dewatering and water transfer. It's noted for its energy efficiency, with a low amp draw (8.0 Amps) and a cooler-running Permanent Split Capacitor (PSC) motor that extends the pump's operational life.
Key Performance Specifications
Horsepower: 1/2 HP.
Flow Rate: Maximum flow of 67 GPM (gallons per minute) at a 5-foot head.
Maximum Lift: 30-foot shut-off head.
Solids Handling: Capable of passing solid waste materials up to 1/2" in diameter.
Discharge: 1-1/2" FNPT (Female National Pipe Thread)
Automatic Operation: The "CIA" model indicates automatic operation, typically utilizing an integral snap-action float switch.
Switch Levels: It usually activates (turns on) when water reaches 7"–10" and shuts off when it falls to 2"–5".
Construction: Features a heavy-duty, epoxy-coated cast iron motor housing for corrosion resistance, stainless steel screws/bolts, and a vortex impeller.
Thermal Protection: Includes built-in thermal overload protection to prevent the motor from overheating during extended use.
